Selling my wonderful DB751 – one of the most sought after heads of all times. I switched completely to In Ear Monitoring so now I can part with it.

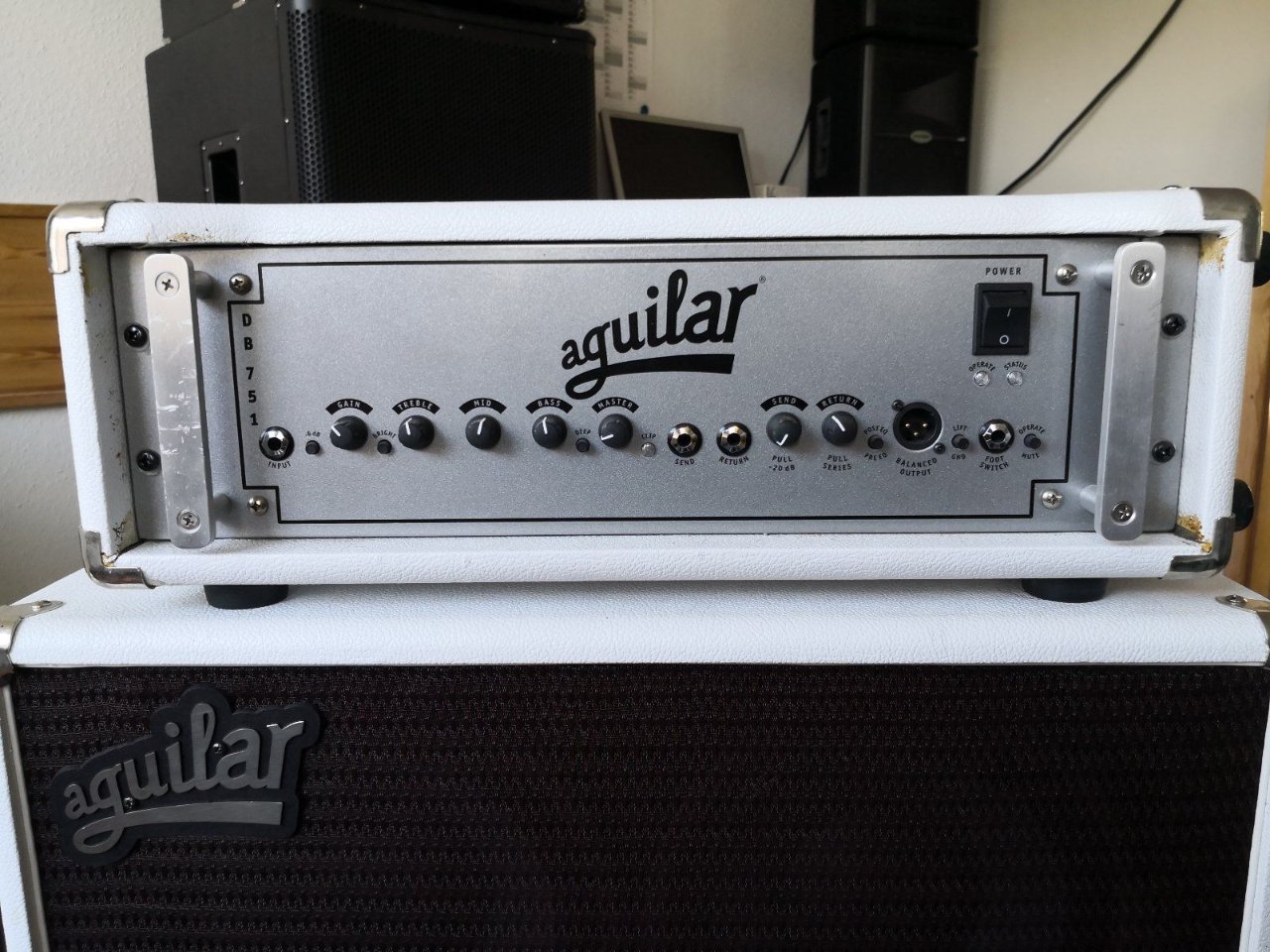

The sound is outstanding. Please read all the reviews of this amps in the web. The original white hardcase is included as well as a touring flightcase to protect the white case
. I can ship it in the flightcase, but this will be expensive and buyer takes all risks of damage !
Specs from the manual
EQ Section: passive tone stack with active midrange element, bass: +12 / -12 @ 40Hz; midrange: +12 / -12 @ 750Hz; treb: +12 / -7 @ 4kHz
Deep Switch: Adds 5 dB of broad-band boost at 30 Hz
Bright Switch: Adds 5 dB of broadband boost at 5-7 kHz
Effects Loop: Send is push/pull for line or instrument level; Return is push/pull for parallel or series operation
Inputs: One 1/4” input jack with an active/passive switch
Outputs: Two Neutrik Speakon speaker outputs, Jensen XLR balanced output (-32db with a pre/post EQ switch and a ground lift switch.
Tuner out.
Cooling: Original fans professionally replaced with low noise high end Noctua fans !
Dimensions: 17” W x 14” D x 5.25” H
Rack Size: Three Spaces, Includes detachable rack ears
Weight: 42 lbs

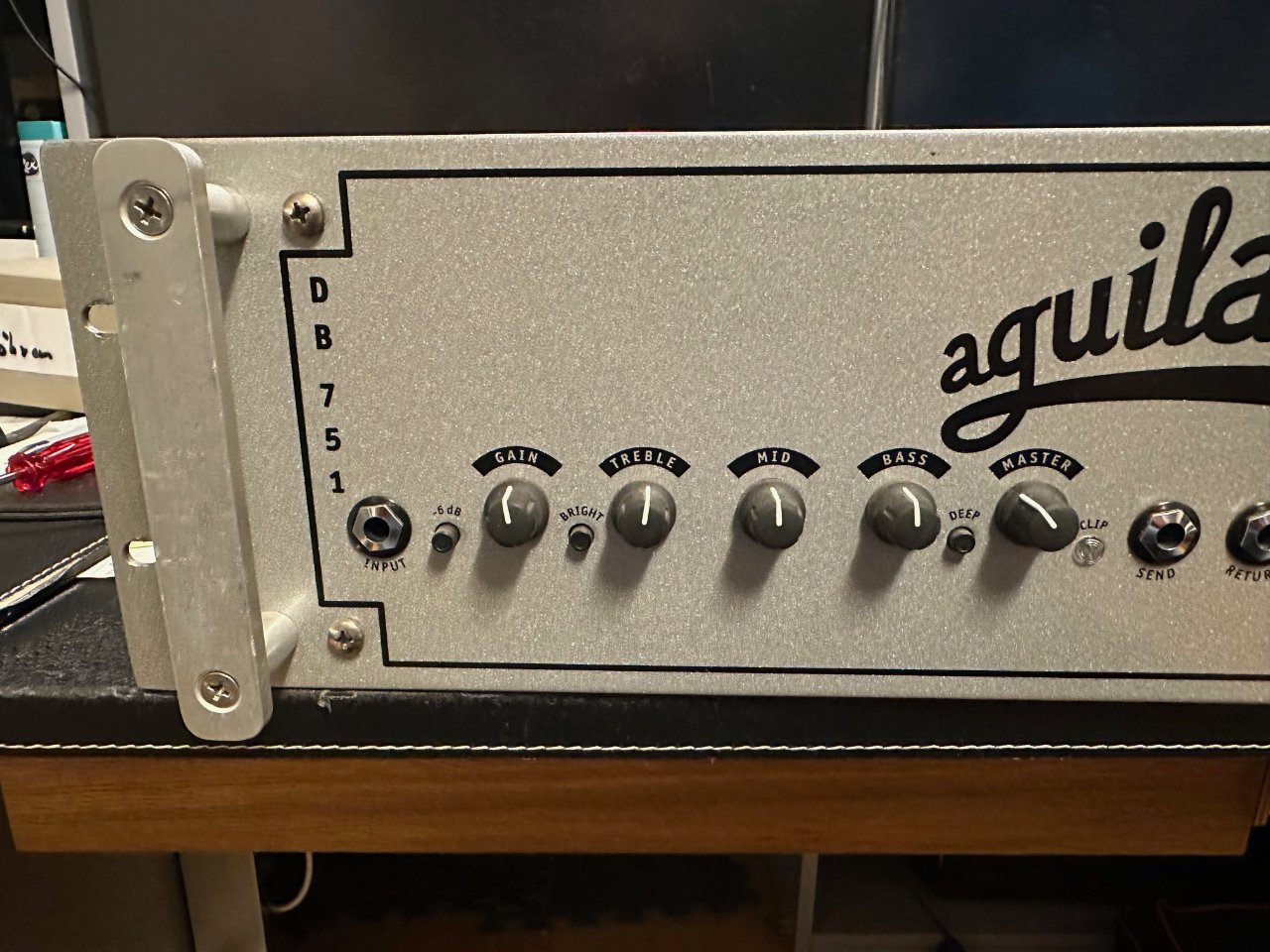

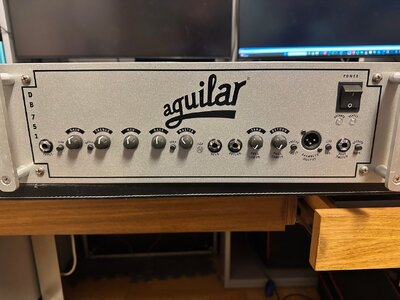

Front Panel Features:
Input:
-6 dB Switch: Inserts a –6dB pad in the signal path to allow flexibility when adjusting the gain for a bass with very high output
Gain Knob: Controls the gain of the preamp section
Bright Switch: Adds 5dB of broadband boost at 5-7 kHz
Treble Knob: +12 / -7 dB @ 4 kHz.
Midrange Knob:+12 / -12 @ 750Hz
Bass Knob: +12 / -12 @ 40 Hz
Deep Switch: Adds 5dB of broadband boost at 30 Hz
Master Knob: Controls volume
Clip Light: Flashes if the preamp is clipping. Turn down either the “Gain”, the EQ, or “Master” volume.
FX Send: Sends the signal to your effects units. Connect the input of your effects unit to this jack
FX Return: Returns the signal from your effects units to the amplifier. Connect the output of your effects unit to this jack.
Effects Loop: The “Send” knob is push/pull for selecting line or instrument level.
This allows you to use a studio effects unit (line level) or a stomp box (requires instrument level) in the FX loop. Adjust the amount
of “Send” so as to get maximum performance from your effects unit and the “Return” to get the right amount of effected signal.
The “Return” knob is push/pull for parallel or series operation. In parallel mode, the effected signal is mixed to the dry sound. In
series mode, the effects in the loop will process the entire signal. The amount of effects can be adjusted with the return knob. If
you pull the return knob out for series operation without any effects plugged in the loop, the loop will be open and no sound
will result.

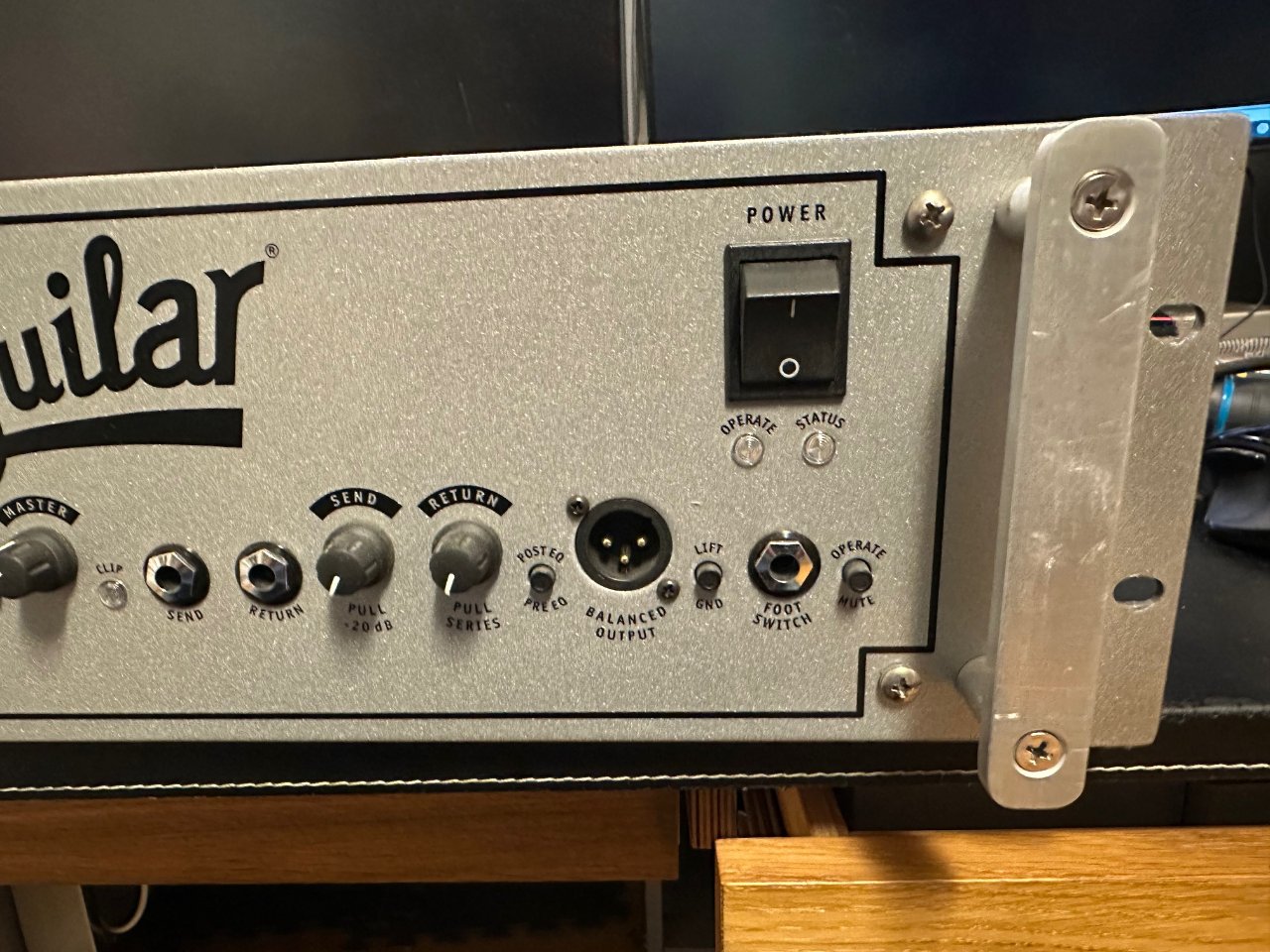

XLR Balanced Output:
Use the Pre-EQ setting in a concert situation where the sound engineer is taking a signal into the house-mixing console. The engineer is now getting their feed before the preamp stage, which allows them to use appropriate EQ for the venue. The EQ on stage will still be controlled by your settings. If the engineer wants your EQ settings included in the mix, set the control to Post EQ and your settings on stage will be sent to the house.
The D.I. output is –32dB. This level is the correct output for a signal going into the preamp on a mixer. Our balanced output uses the highest quality Jensen output transformer. If you hear any ground noise, change the position of the ground lift switch under the output.
Footswitch: Use the optional Aguilar footswitch to mute the signal for silent tuning.

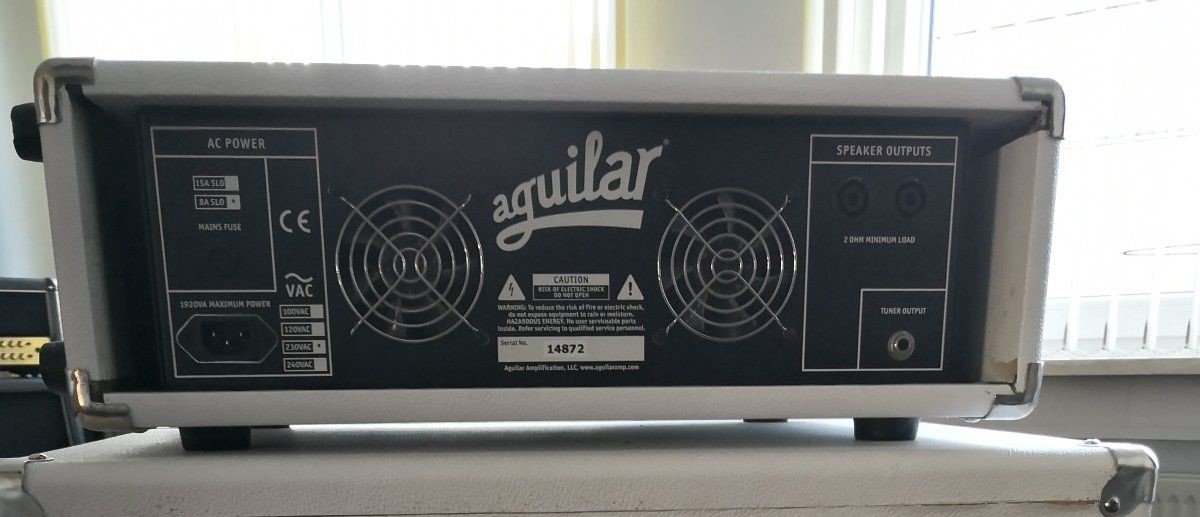

Rear Panel:
Speaker Outputs:
Two Neutrik Speakon connectors are provided. Use 12 gauge or larger speaker cable for proper connections.
Tuner out: This output sends the signal to your connected tuner. This output will still be active when you mute the DB 751.
Diagnostic and Protection
The DB751 is equipped with a self-diagnostic and status/protection circuit. Upon power-up, the unit’s blue status LED will blink for approximately 45 seconds. During this time several circuit parameters are verified, or allowed to become self calibrated.

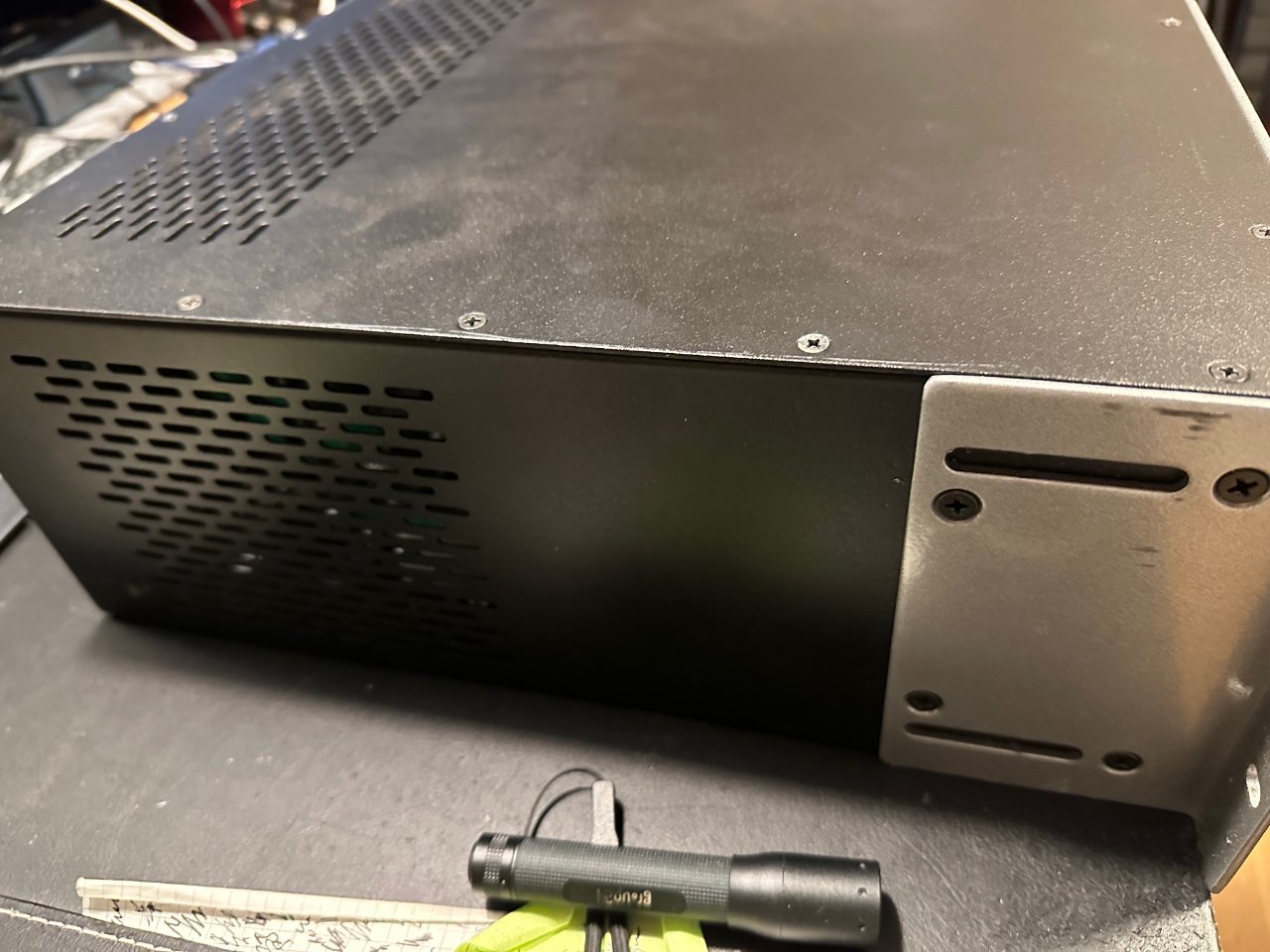

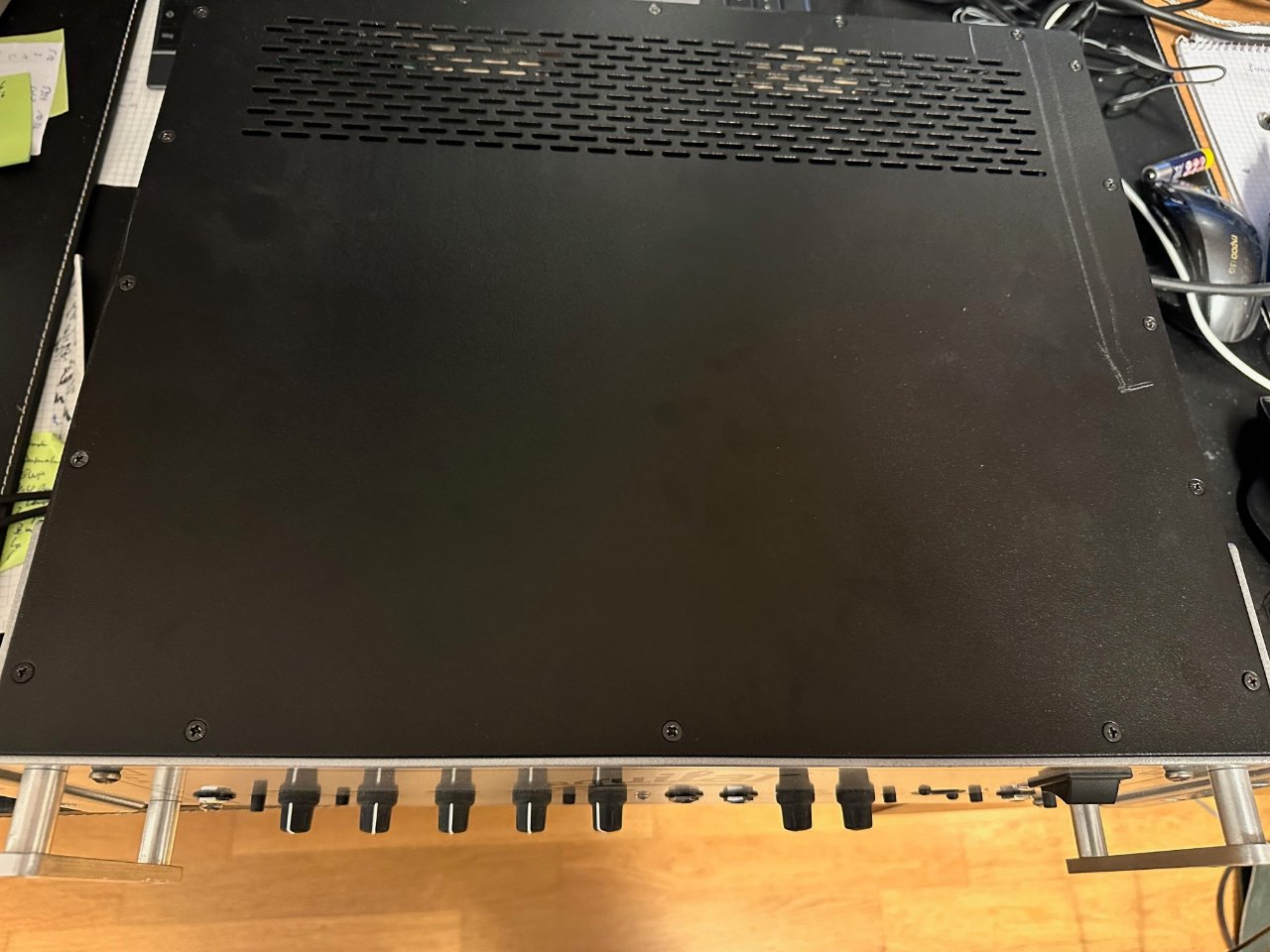

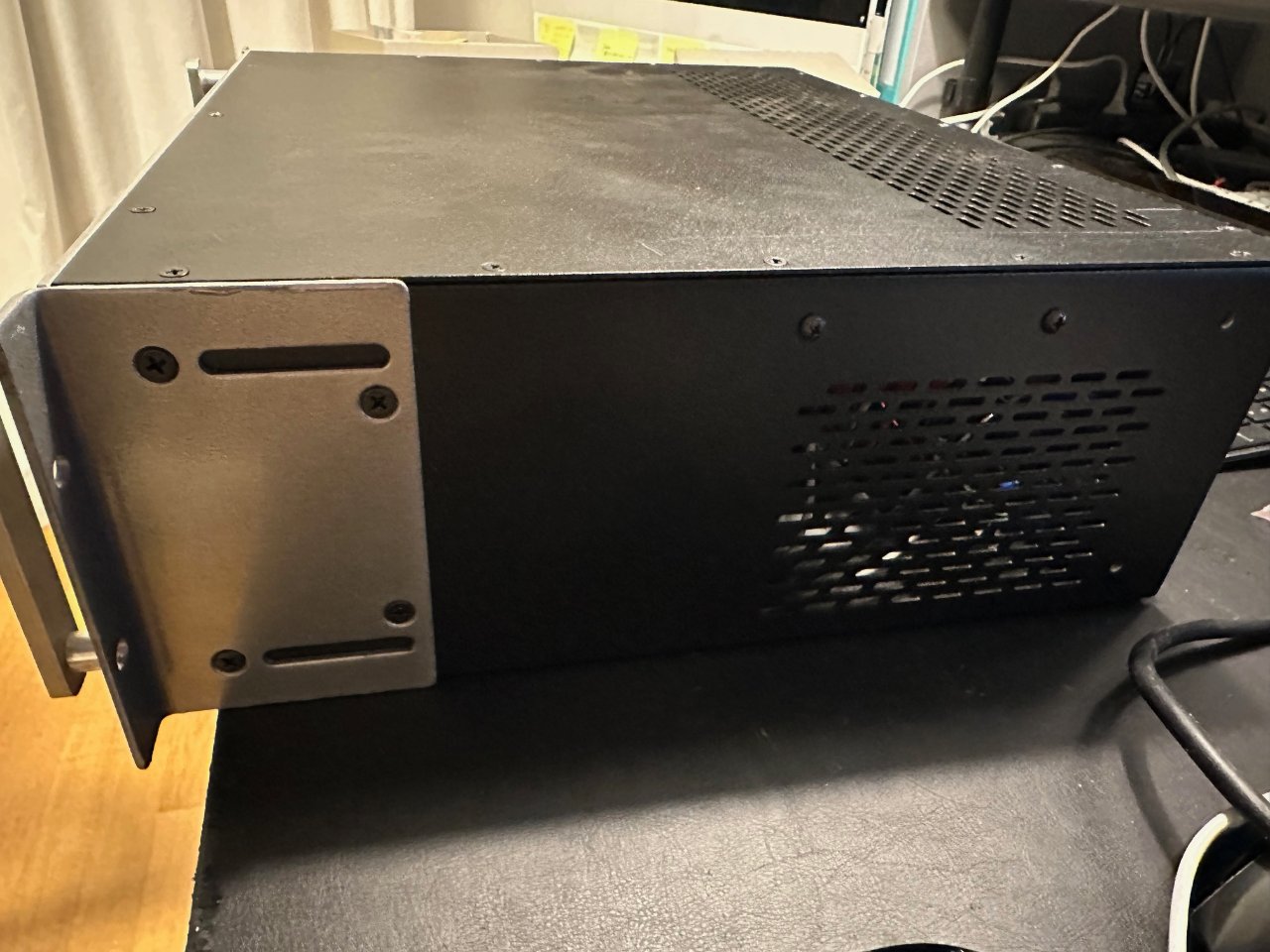

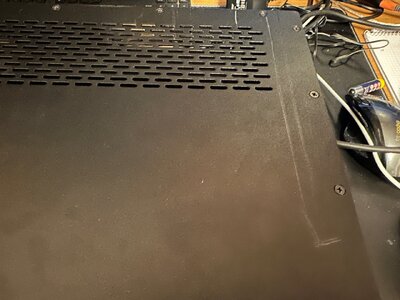

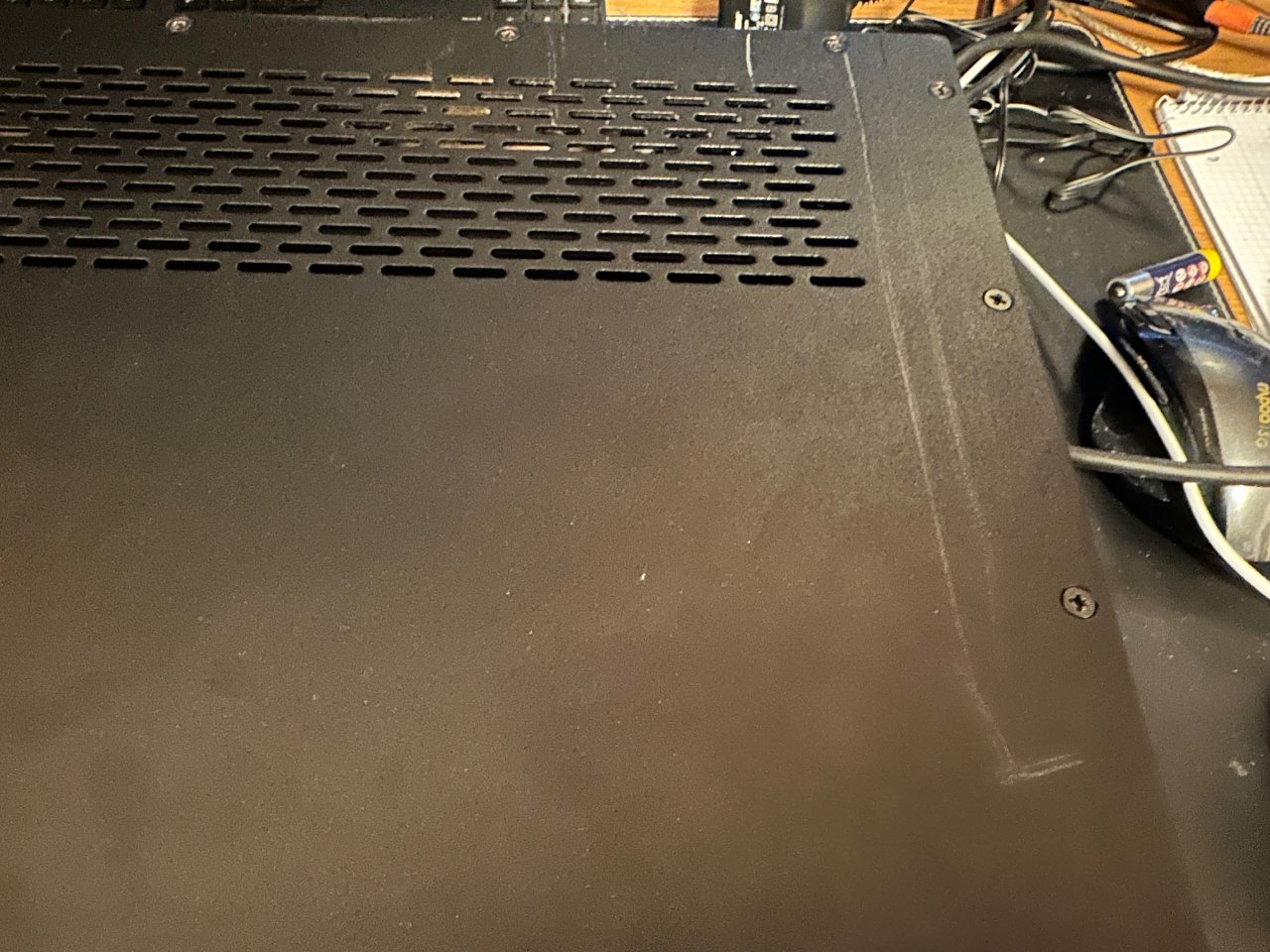

Everything works as it should. Some dings here and there but nothing serious.
Asking 1.600 € plus shipping from Duesseldorf/Germany. No trades please.
