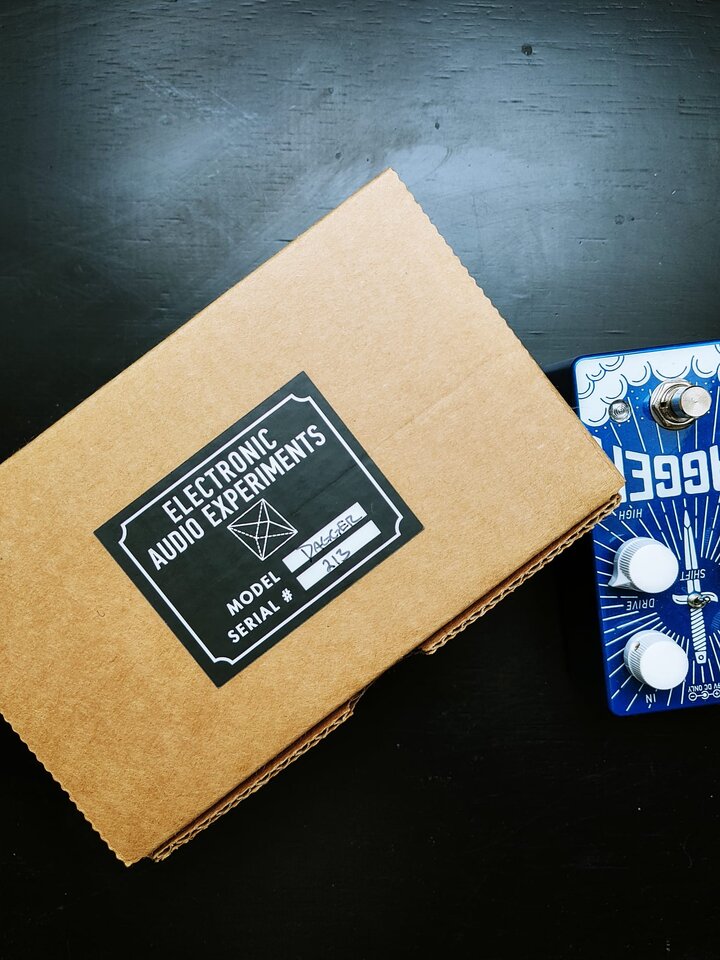

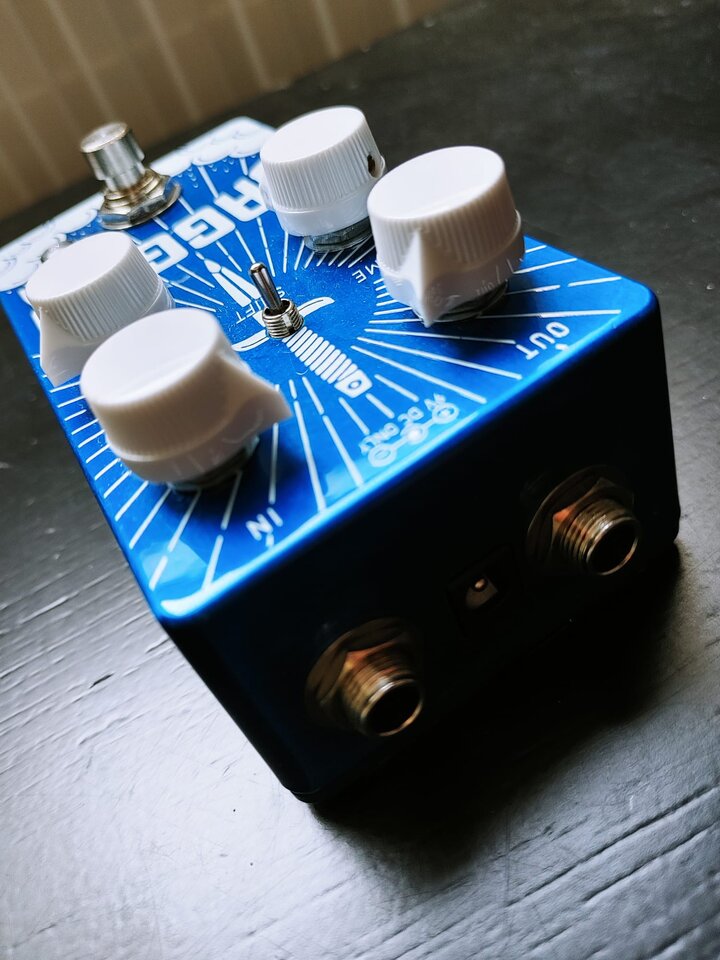

Verkauf ein ultra geniales, sau gutes Dagger MK 2 OD / Dist. von
Bypass: Relay switching with true bypass Input impedance @ 1 Khz: 500kΩ Output impedance @ 1 Khz: <25K (passive volume control) Power: 9-18V DC, 2.1 mm center negative barrel. The current draw is 50 mA. We recommend a regulated, isolated power supply rated for 100 mA minimum. The PSU input is protected against reverse polarity.
The Dagger can be operated at 18V for more headroom and clarity.

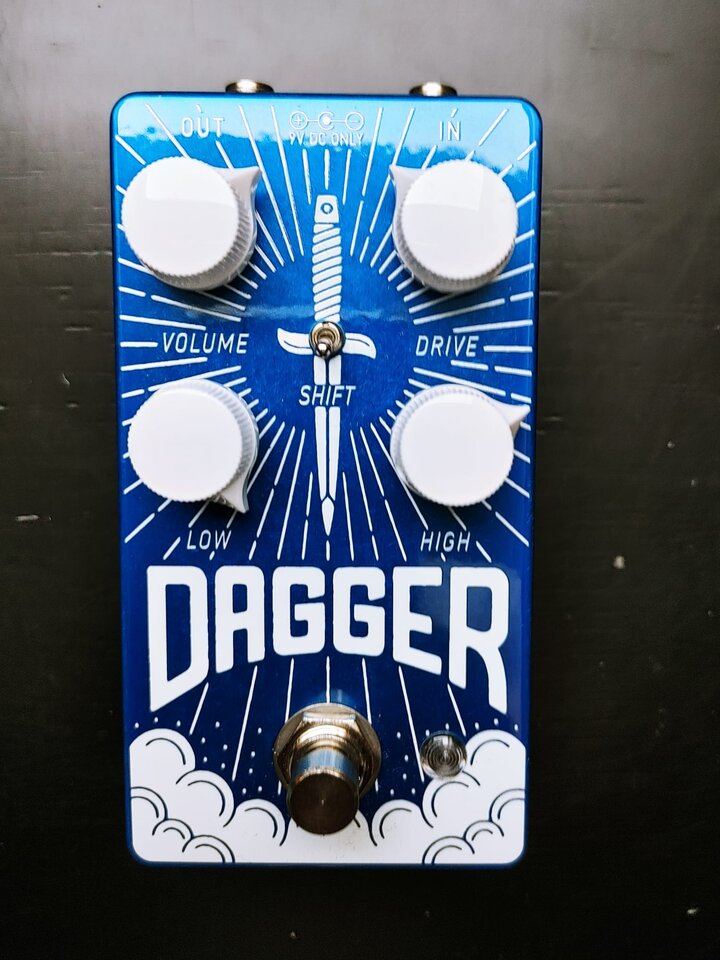

Controls
Volume: output volume, self explanatory
Drive: turn clockwise to increase the amount of overdrive
Low/High: James/Baxandall tone stack (shelving filters)
Shift (toggle): Adjusts the low frequency contour. Up produces a thicker sound, and down produces a tighter sound
Blau kann gehen, rosa bleibt.
***
Privatverkauf unter Ausschluss von Garantie, Gewährleistung, Rückgabe, Umtausch und Rückzahlung.
