Glockenklang Bassart Classic Preamp

Moin zusammen,

die Kiste werde ich wohl vermissen - muss mich aber von einigen Dingen trennen.

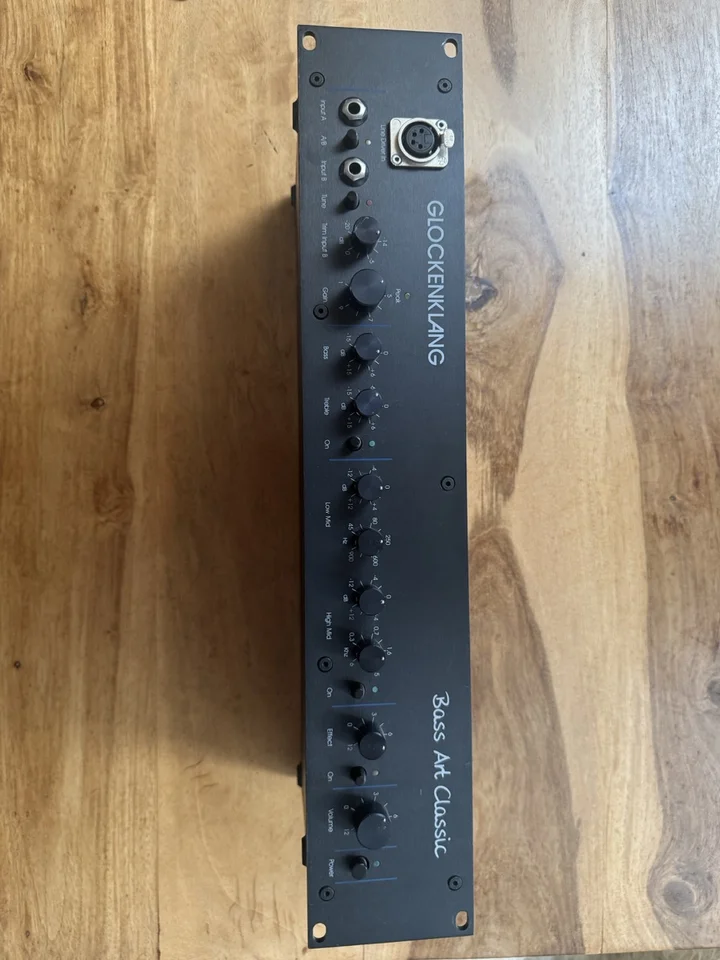

Hier mein Bassart Classic.

Verkauf für 650 EUR inkl. versichertem Versand in DE / AT.

Jens

Specs:
Transistor Instrument-Preamp, 19“ 2HE

Inputs
1 XLR 4-pin for Line-Driver (pin 1 ground, pin 2 signal, pin 3 +15V, pin 4 –15V),
connected to Input B, will be disconnected by jack-plug in Input B jack
1 Jack (1/4“) A for passive basses and active basses with low output level
1 Jack (1/4“) B for active basses, additional pre-damping control,
disconnects XLR Line Driver when used

Equalizer

Bass ±15 dB 60 Hz
Treble ±15 dB 12 KHz
Low Mid ±12 dB 45 - 900 Hz
High Mid ±12 dB 0,3 - 6 KHz

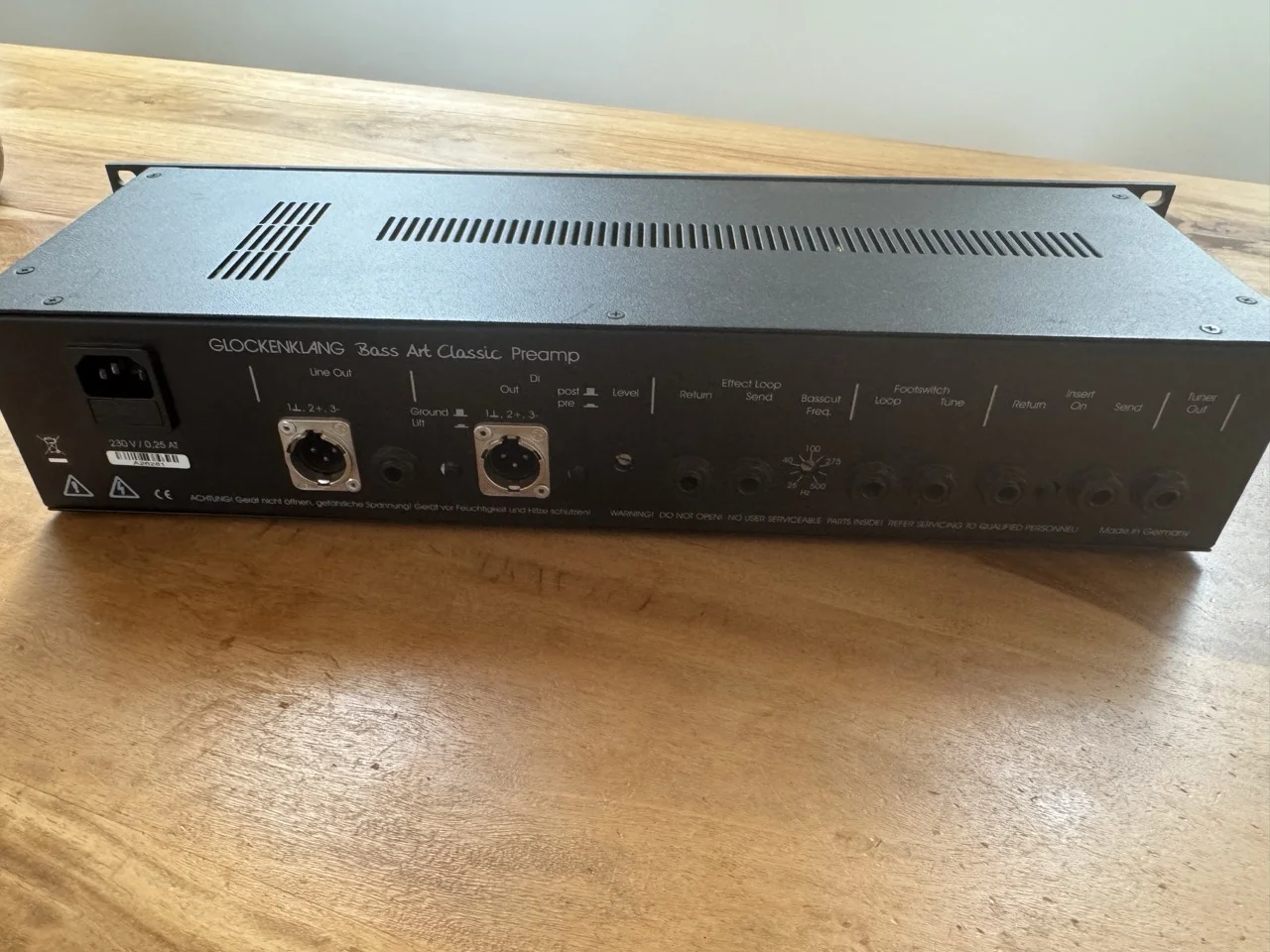

Outputs

1 Tune Send Jack (1/4“)
1 Line Out Jack (1/4“)
1 Line Out XLR, (pin 1 ground, pin 2 signal +, pin 3 ground),
opt. transformer-symmetric (then pin 1 ground, pin 2 signal+, pin 3 signal -)
1 balanced DI-Out XLR, with level-control (pin 1 ground, pin 2 signal +, pin 3 signal -)

Effect-loops

1 serial Insert, pre Eq
1 parallel Loop, post Eq, with mix feature (0-100%) and frontswitch and footswitch activation,
internally switchable to intensity of 0 to 50% with no changing of original-level,
adjustable Basscut (25 – 500 Hz) in Send output

Switches

1 Input A/B (activates Input A or
1 Tune (cancels all outputs without Tune Send)
1 Treble/Bass Eq On
1 Low Mid/High Mid Eq On
1 Effect On
1 Power On
1 Ground Lift
1 DI pre/post Eq
1 Footswitch jack Tune On
1 Footswitch jack Effect On
1 Insert On

Special features
Class A preamp-technique
LED Peak indicators
LED Indicators for all switch functions

Built in A/B box with separate damping control for input B

Frequency range: 20 Hz to 25 KHz -1dB
Power requirement: 230 V AC / 0,4 A slo - US-version 117 V AC / 0,8 A slo
Dimensions : 483 x 88 x 170 mm (19“ x 3,5“ x 6,7“)
Weight: 4,2 kg (9,2 lbs)
