Verkaufe nur für 59,- € oder tausche gegen Bassequipment professionelle

DOD SR823/834 Stereo-2weg oder Mono 3-weg Profi-Frequenzweiche

Stereo 2-way, Mono 3-way

FILTERS: Linkwitz-Riley state-variable

Crossover Slopes: 24dB per octave, Accuracy: 14%

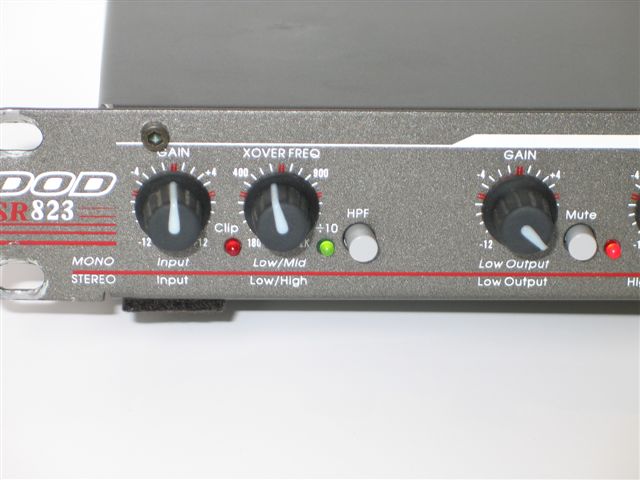

CROSSOVER FREQUENCIES

Stereo:

LOW/MID: 180Hz to 2kHz or 18Hz to 200Hz (selectable switch on rear panel)

MID/HIGH: 450Hz to 5kHz

Mono:

LOW/LOW-MID: 180Hz to 2kHz or 18Hz to 200Hz (selectable switch on rear panel)

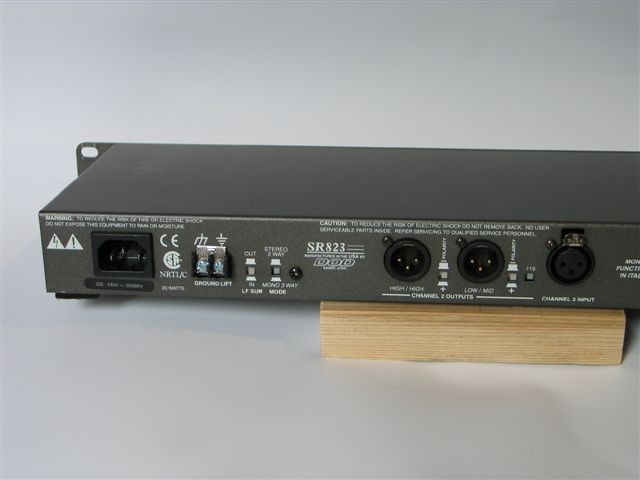

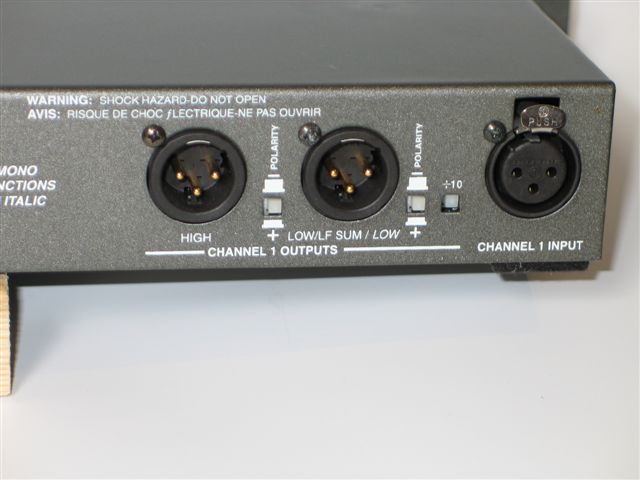

INPUTS: Type: Electronically Balanced Connector: XLR 3 F

Maximum Input Level: Balanced: +27dBu Unbalanced: +27dBu

Input Impedance: Balanced: 20kΩ Unbalanced: 10kΩ

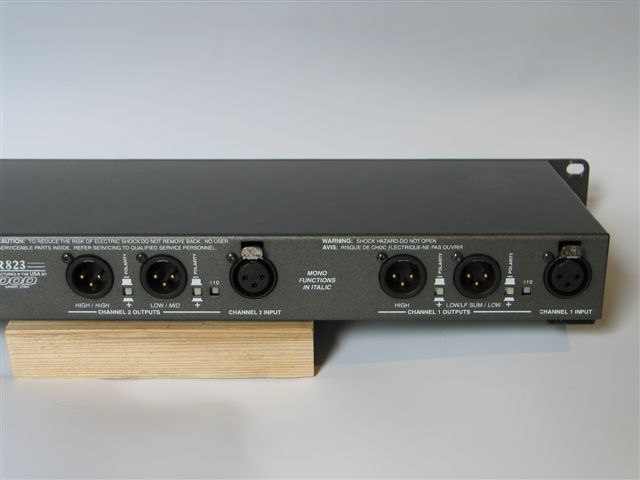

OUTPUTS:

Type: Electronically Balanced Connector: XLR 3 M

Polarity: Pin 2 “hot” (rear panel selectable)

Maximum Output Level: 10k Ω Load 600 Ω

PERFORMANCE:

THD+Noise: Less than 0.004%. (Crossover @ 1kHz 30kHz filter)

Dynamic Range (Balanced Output): Minimum: 115dB Typical: >117dB

Hum & Noise (Maximum) Stereo Mode Mono Mode

Low Frequency Output -90dBu -90dBu

Low-Mid Output -89dBu -90dBu


High-Mid Output (834 only) -88dBu


High Frequency Output -88dBu -88dBu


Frequency Response:

Highpass Filter OUT: 10Hz (-0.5dB) to 75kHz (-3dB)

15Hz Highpass Filter IN: 15Hz (-3dBu) to 75kHz (-3dB
